Trim-Tex Fire Rated 093V Expansion

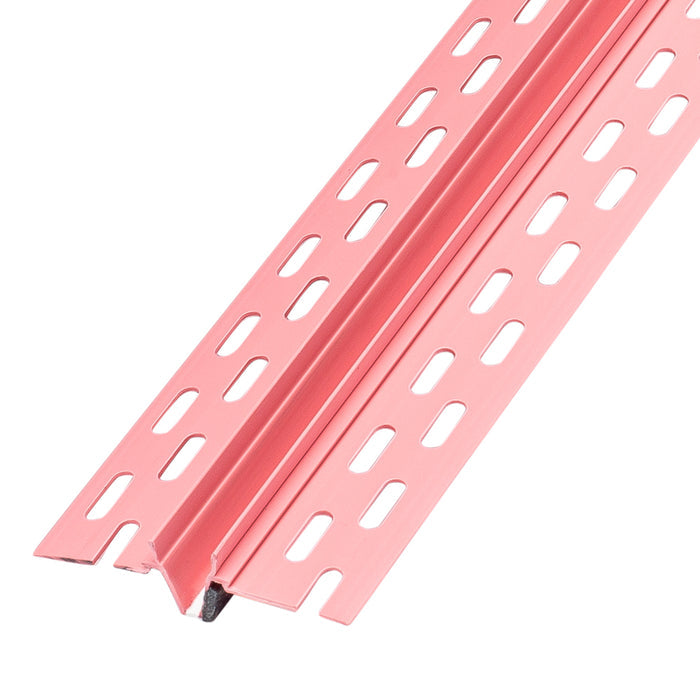

Deep rigid “V” is joined at the bottom with a flexible connection allowing a full ⅜” in controlled movement. Pink coloring quickly indicates to inspectors that the product is fire rated. Listed under U300 and U400-Series Wall or Partition Design in the UL Fire Resistance Directory. UL Rated for 1 hour and 2 hour assembly, refer to UL Detail documentation for full assembly information. Before installation, ensure that the wall is built to outlined specifications for XHBN.WW-D-0172 in the UL directory.

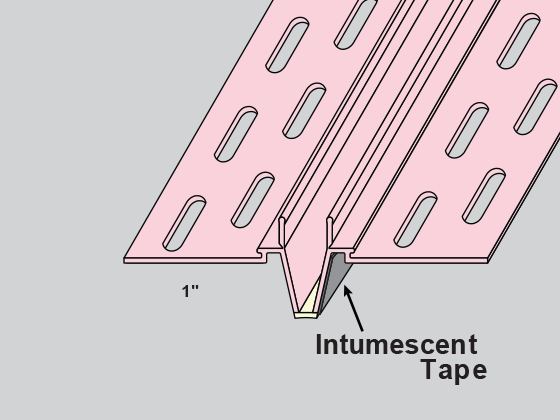

Building out fire rated control joints on wall assemblies using traditional methods is costly and time consuming. Our fire rated 093X-V expansion bead revolutionizes this process. Integrated intumescent tape rated for 1 and 2 hours, and the flexible bead accommodates up to 3⁄8” in building movement.

Features

• Blocks fire & smoke
• Easy to install
• faster firestopping

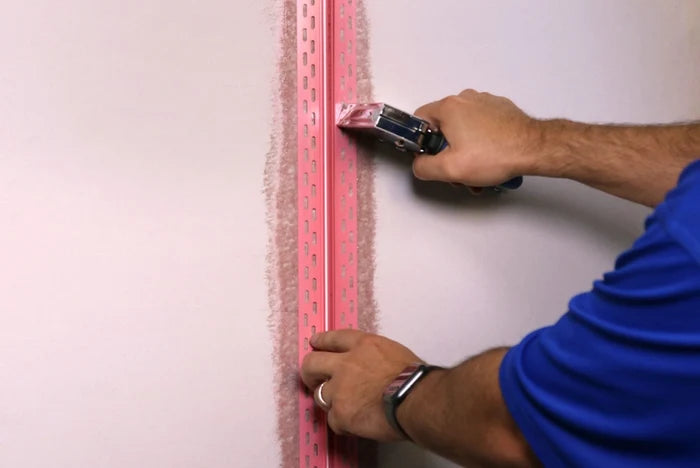

Installation Guide

Fire Rated 093V Expansion Installation Guide R1

Submittal Sheets

093X-V Submittal Sheet R2

SDS

SDS - 093X-V Tape 01Aug2018

SDS - Rigid Vinyl Drywall Accessories 01Aug2018
